We were approached to design a new-build home for our clients, their young children and extended family.  Multi-generational living was a key consideration from the outset, to ensure accessibility and longevity.

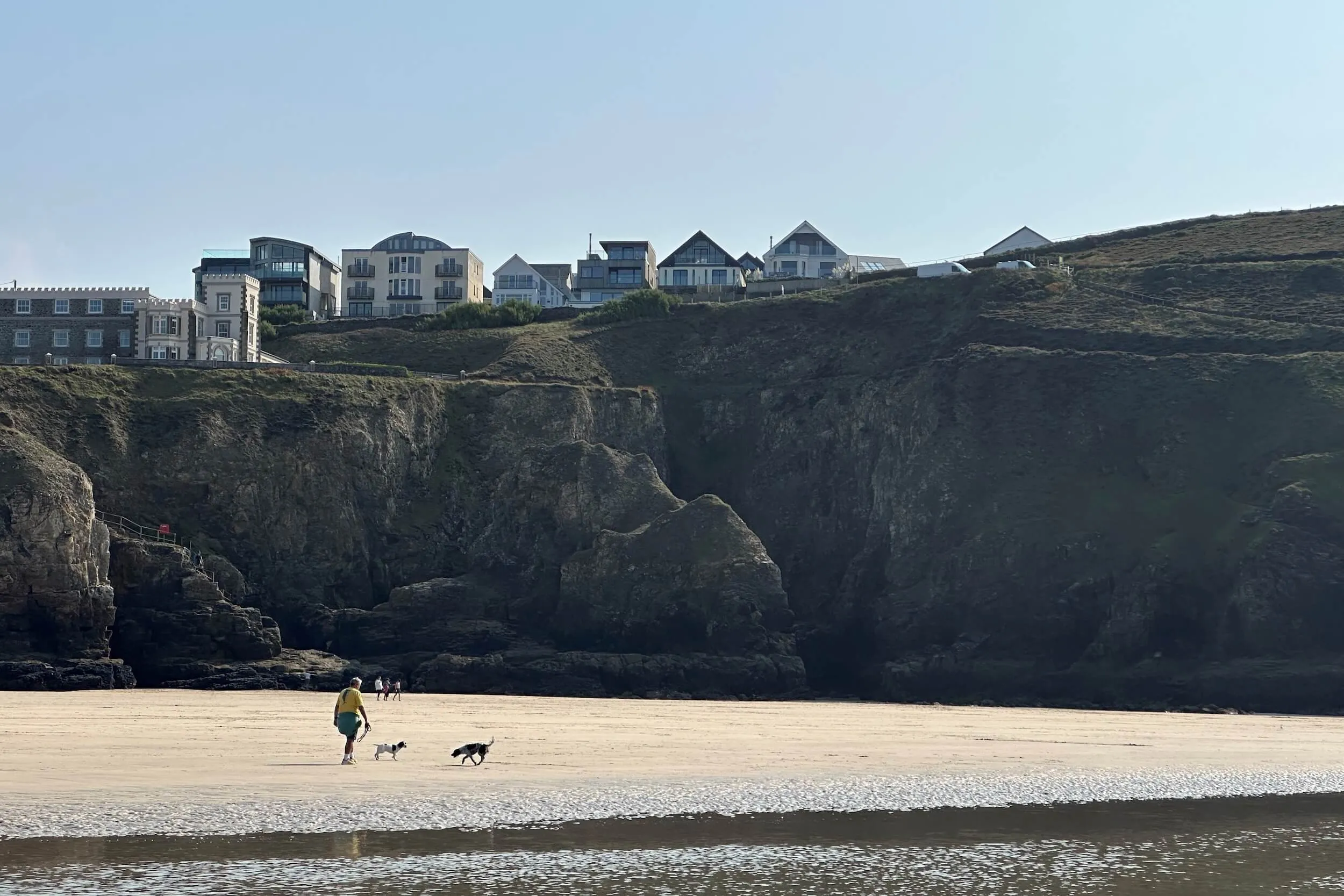

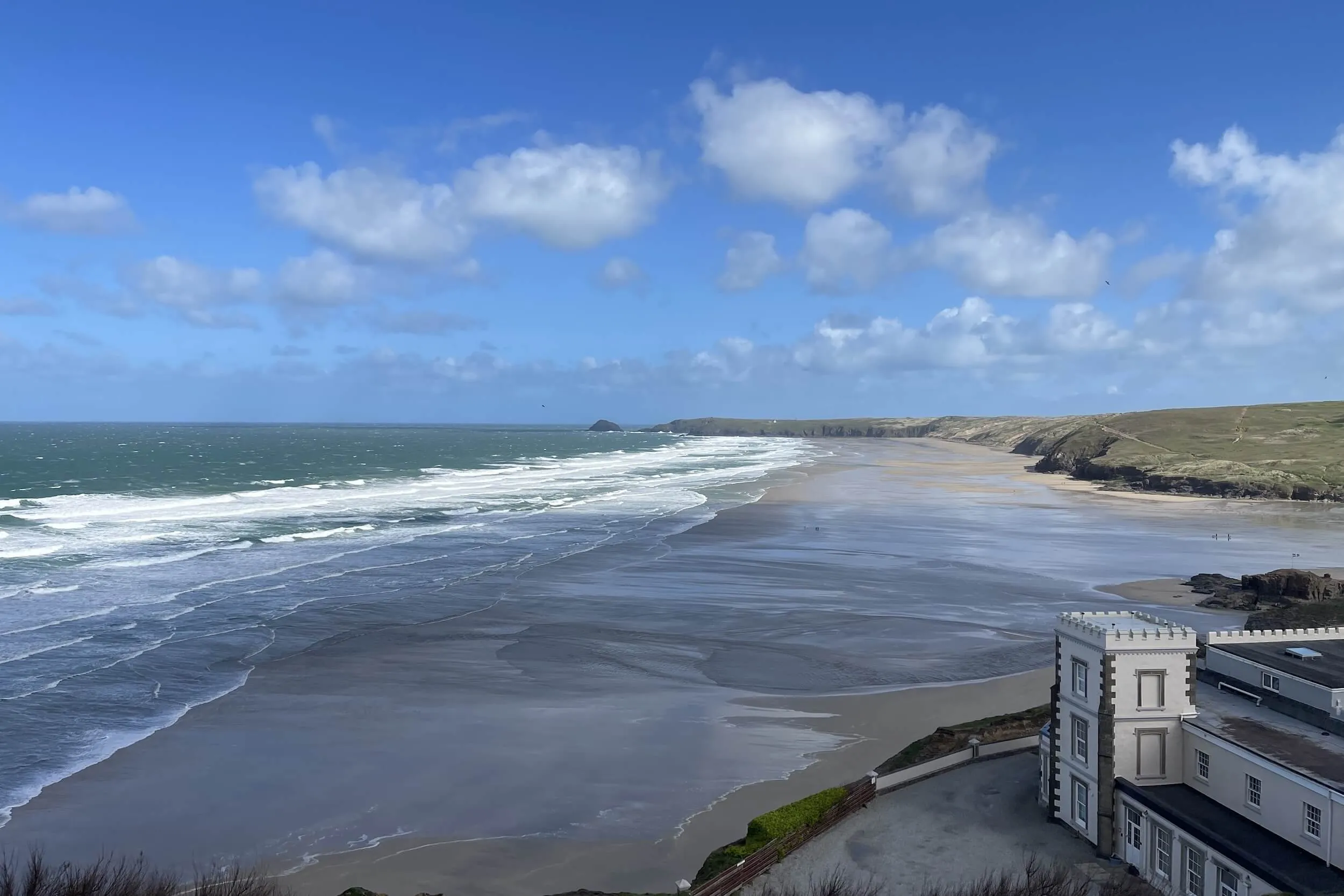

Positioned on a highly exposed coastal site, our clients sought to minimise environmental impact and maximise views whilst maintaining a level of privacy.

No items found.

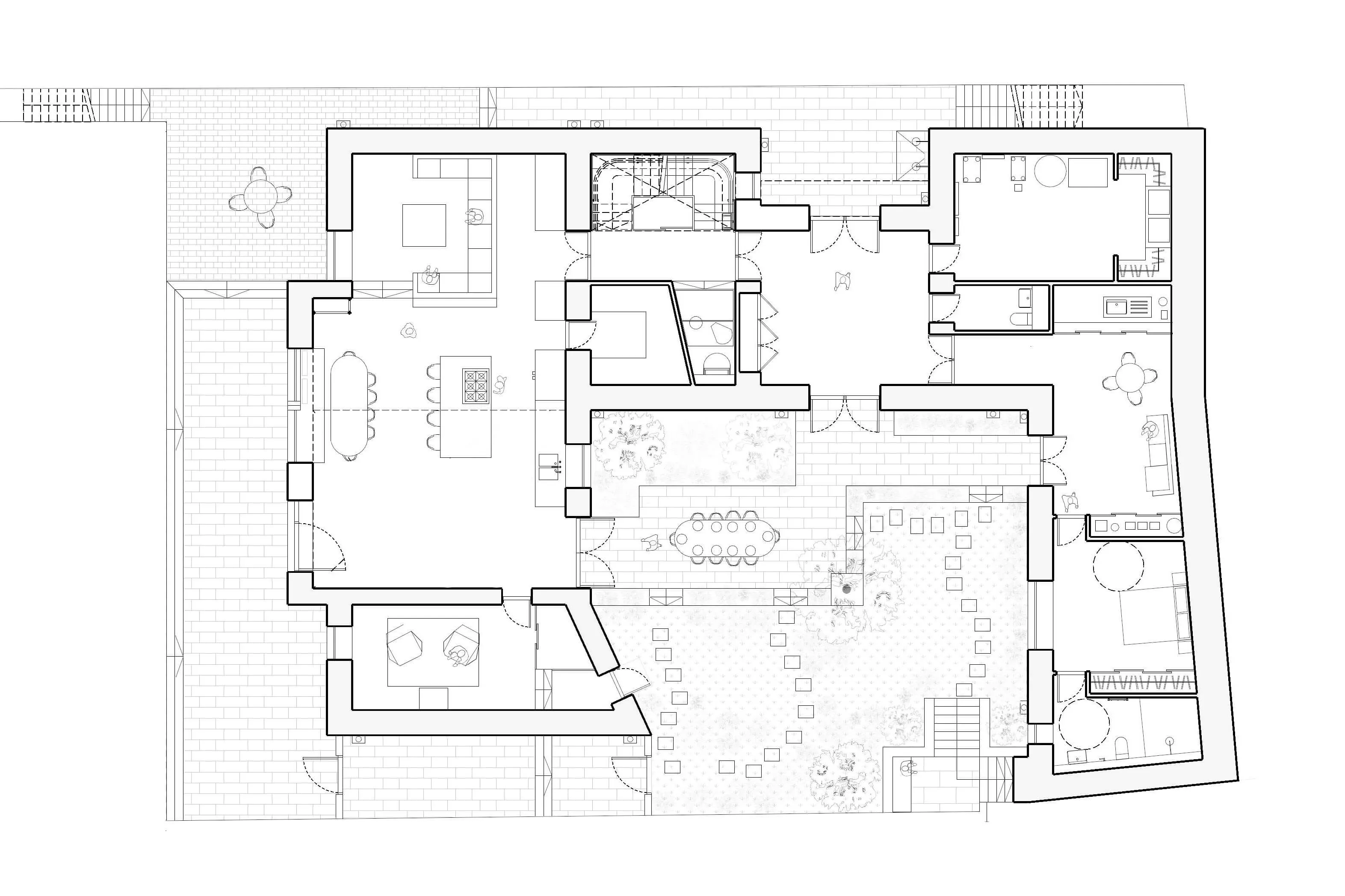

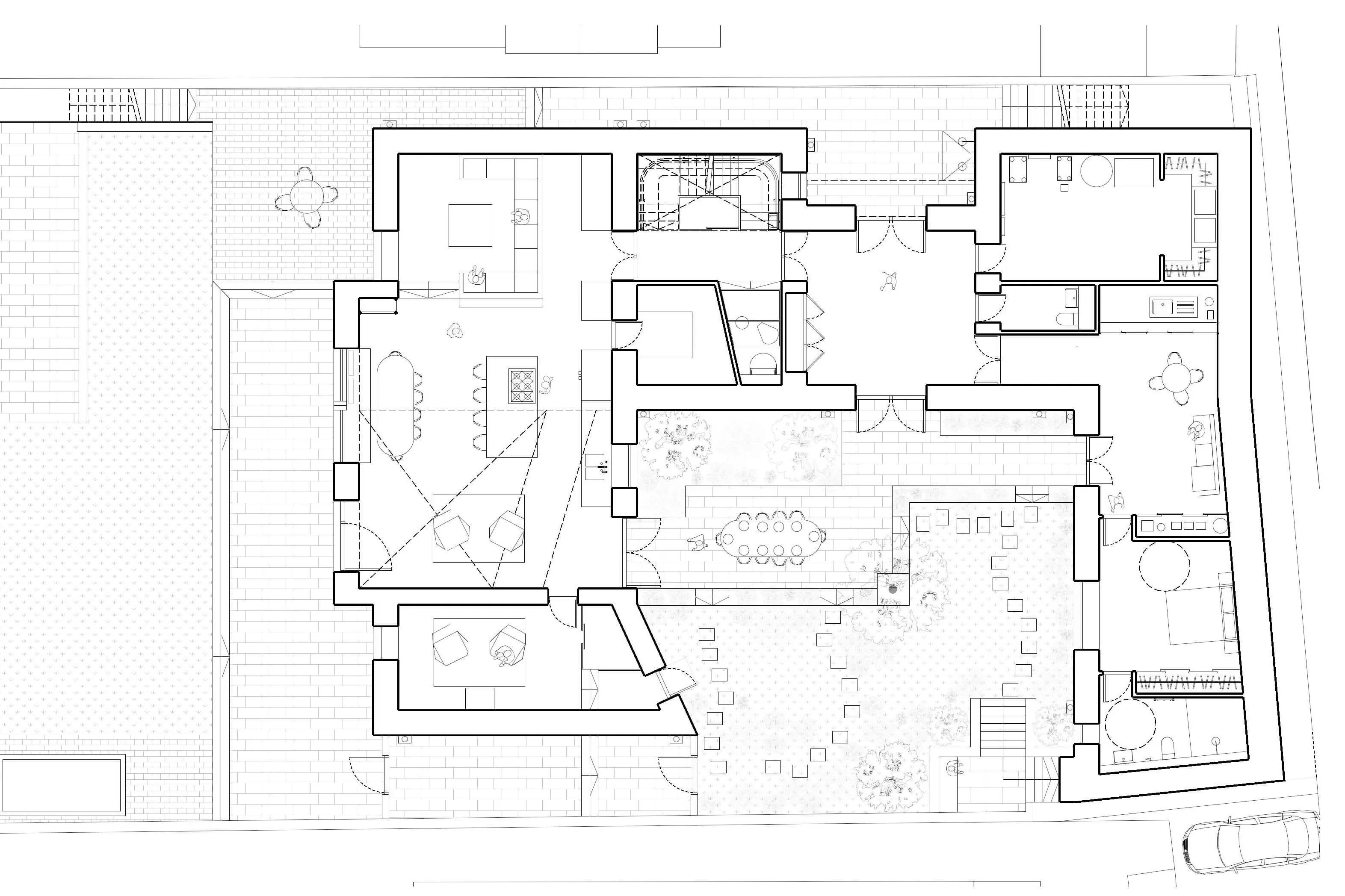

We proposed an open courtyard house arrangement, creating a central landscaped space protected from the elements on three aspects by accommodation wings.

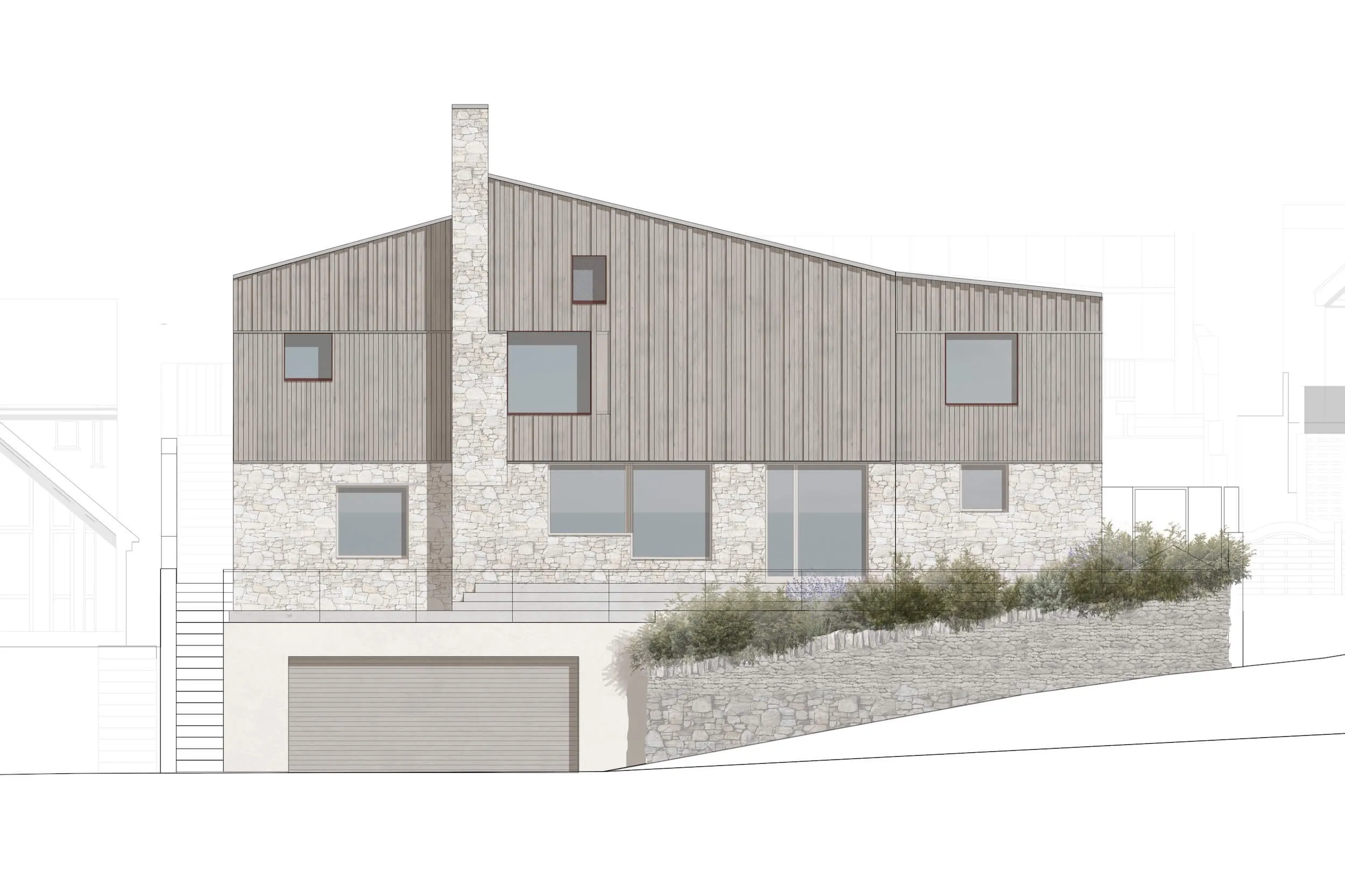

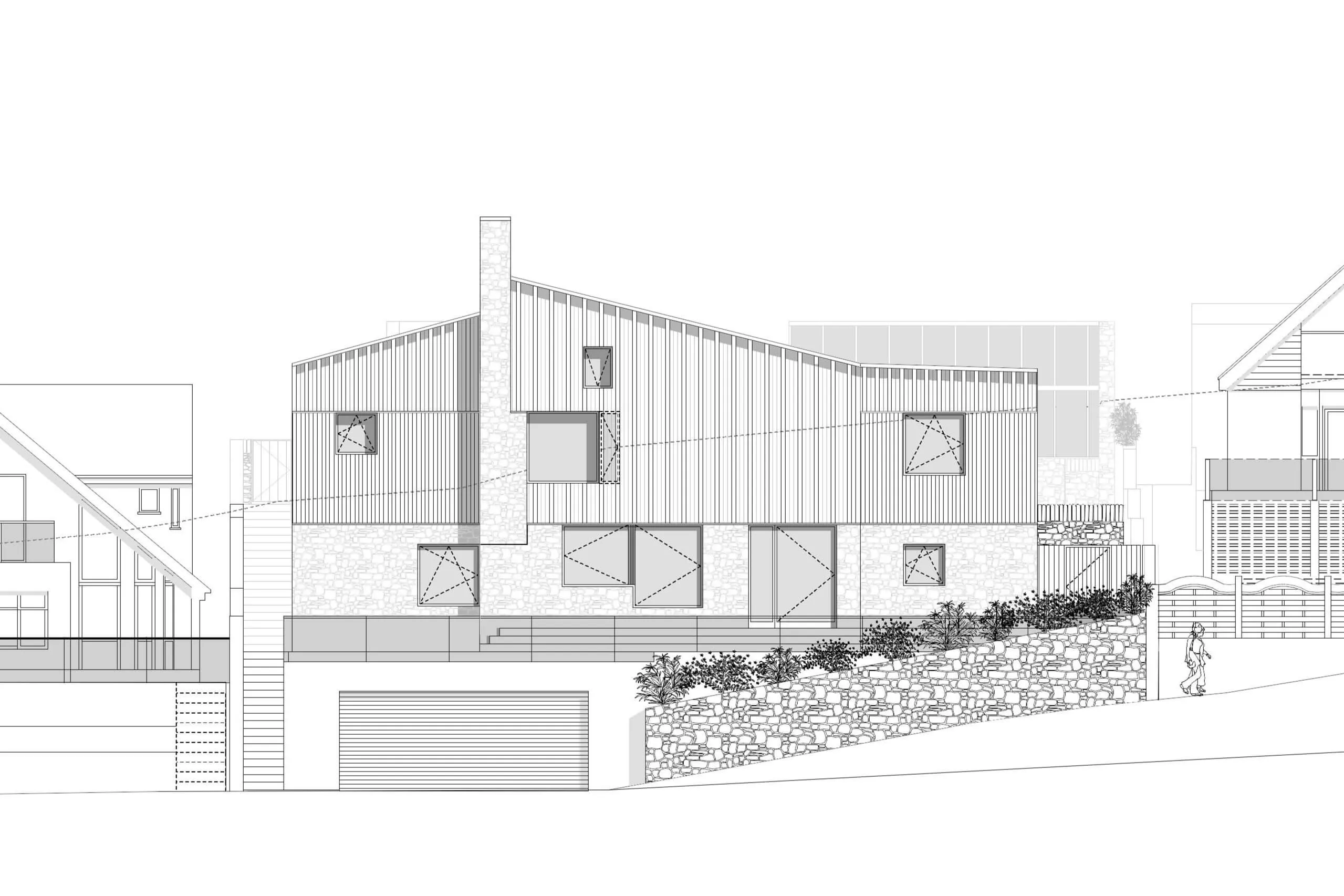

At ground level, masonry structural walls clad in Cornish stone create a solid base for a sustainable timber framed construction above. Our landscape strategy embeds the house into it’s coastal setting with Cornish stone walls, a raised terrace and newly planted trees, shrubs and native plants.

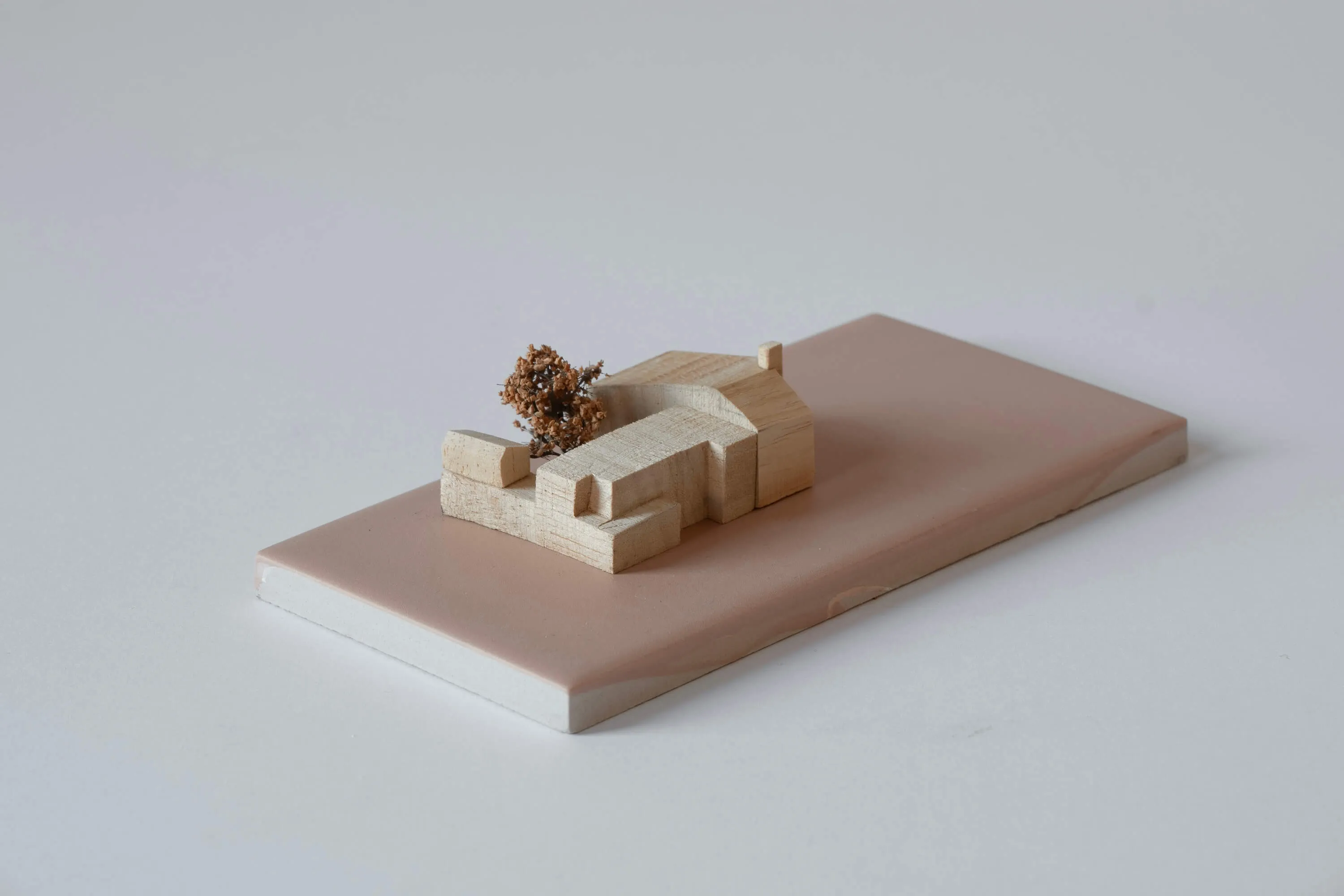

The house is presented as a collection of mono-pitched forms creating a protective barrier around the central courtyard, which houses a sheltered kitchen garden and greenhouse.

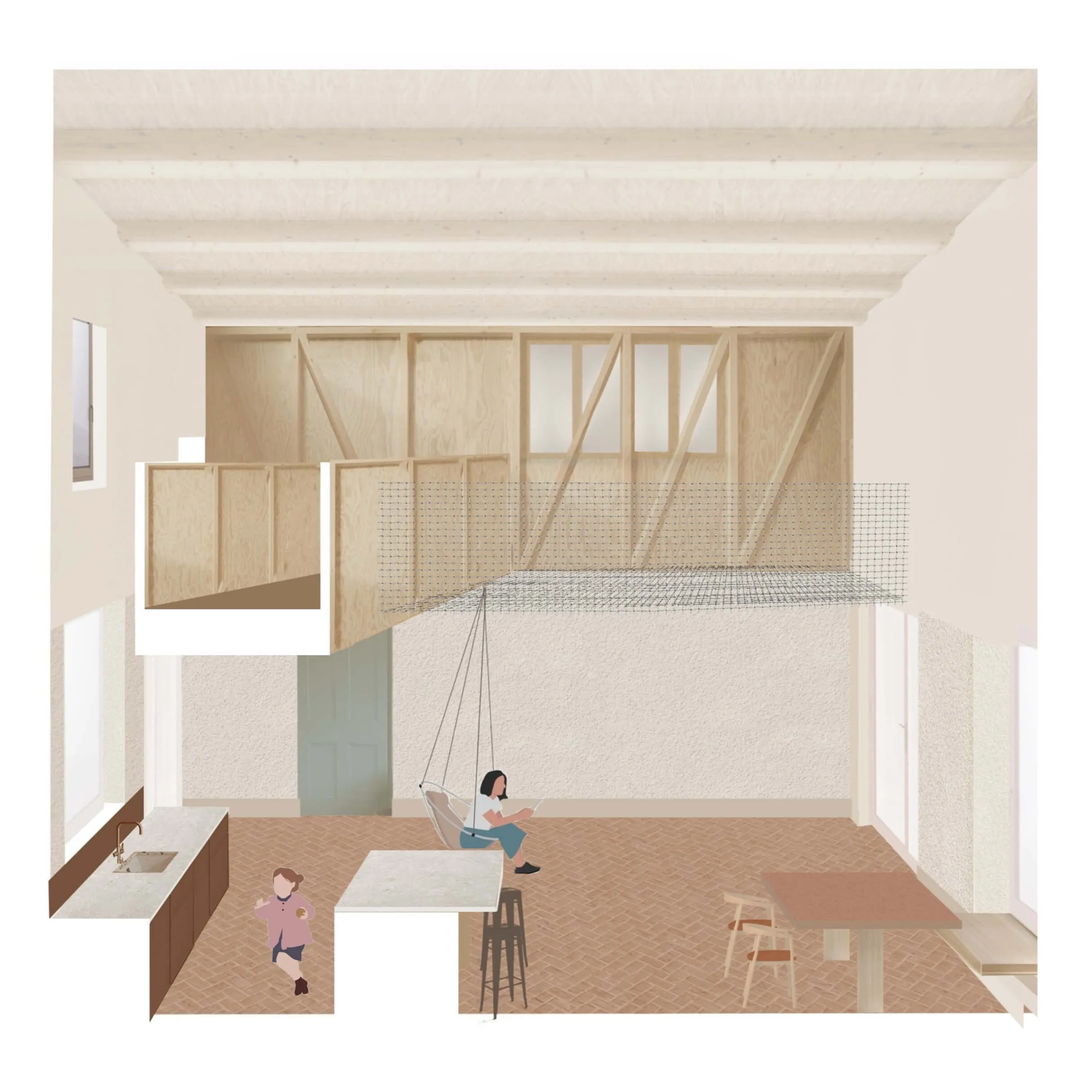

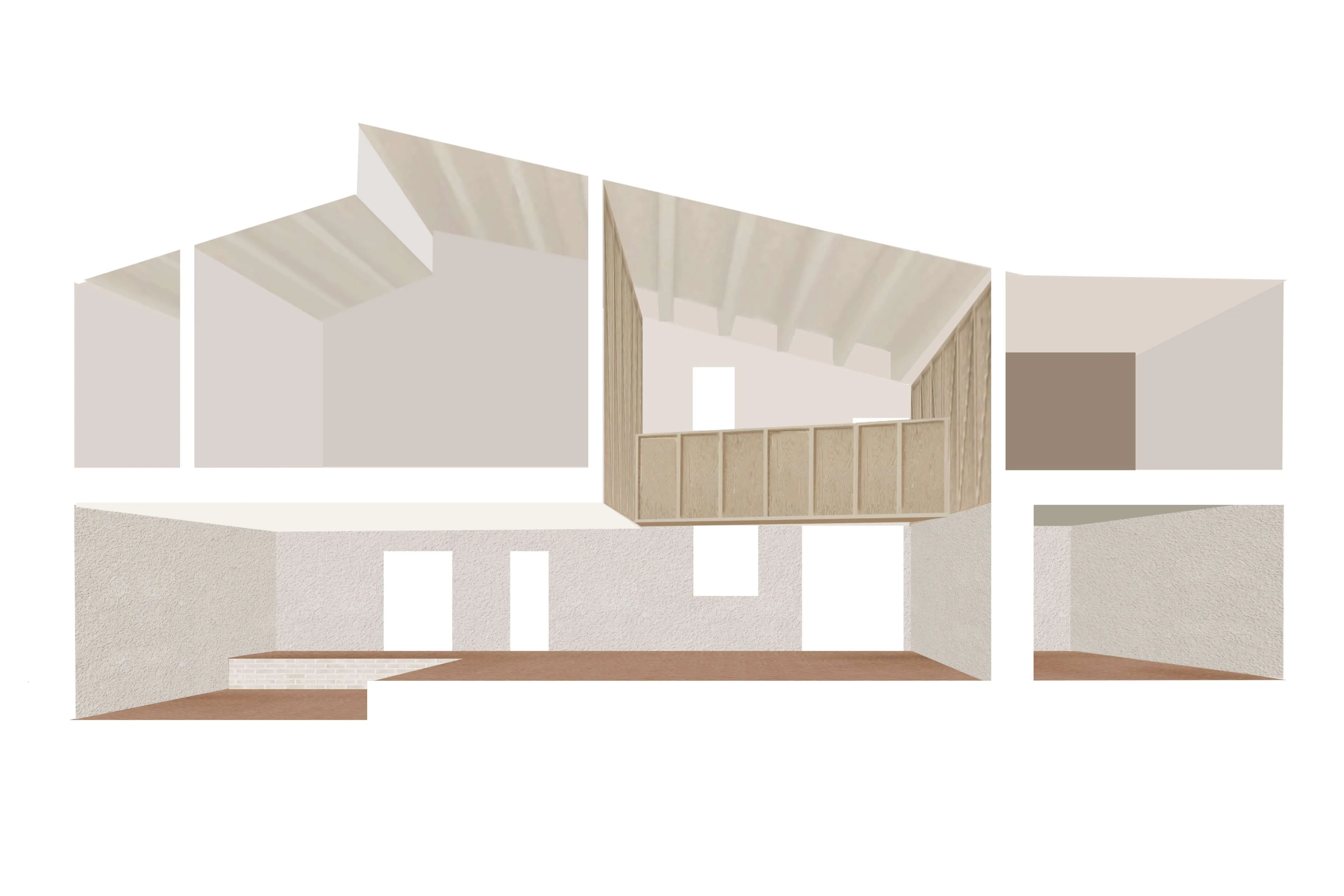

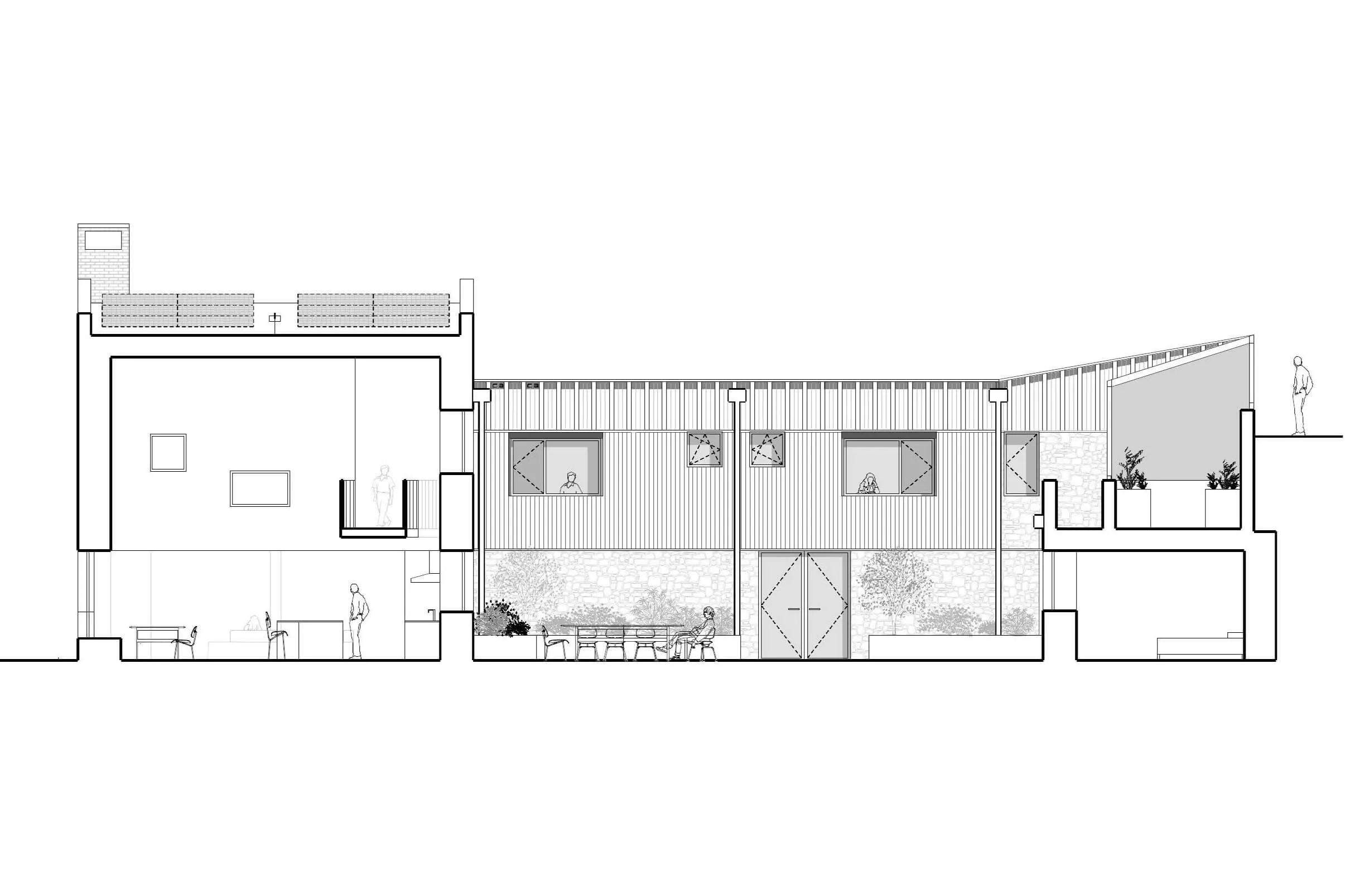

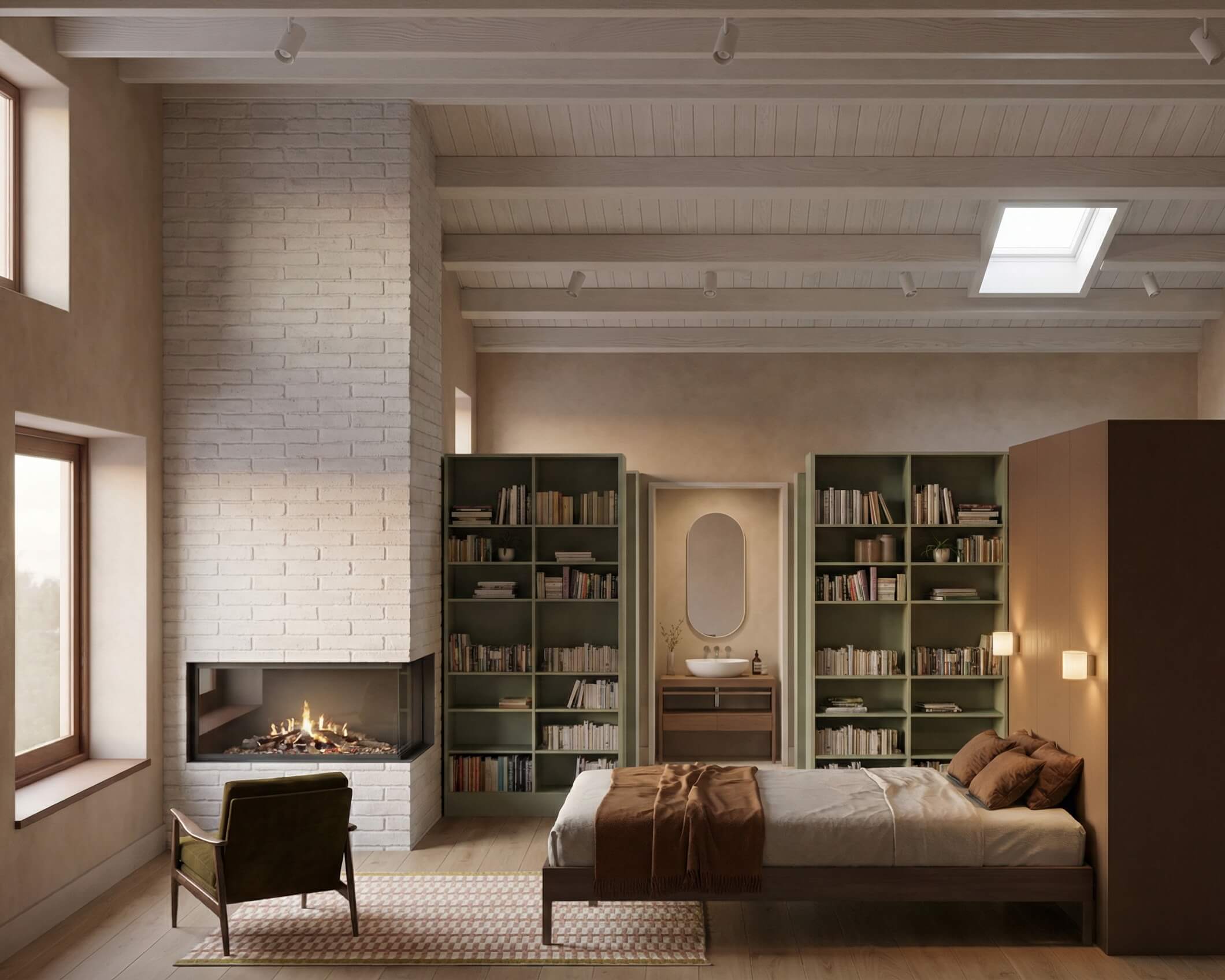

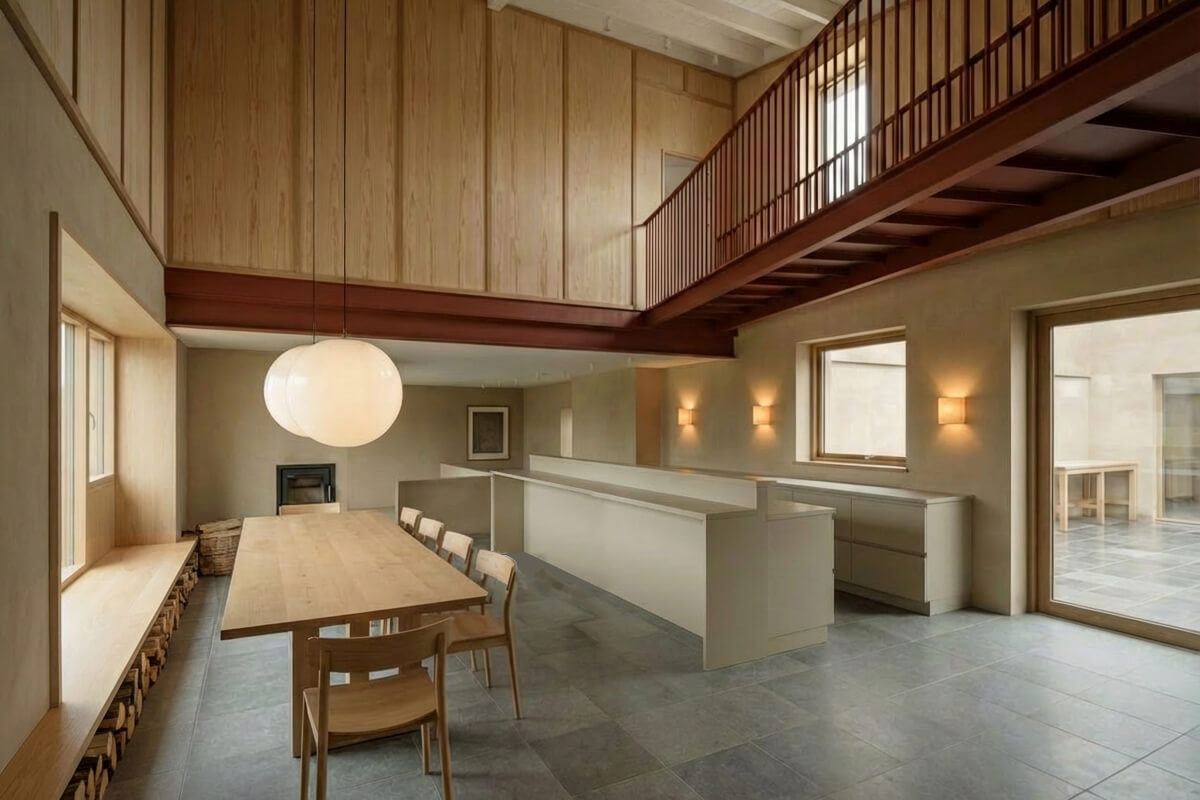

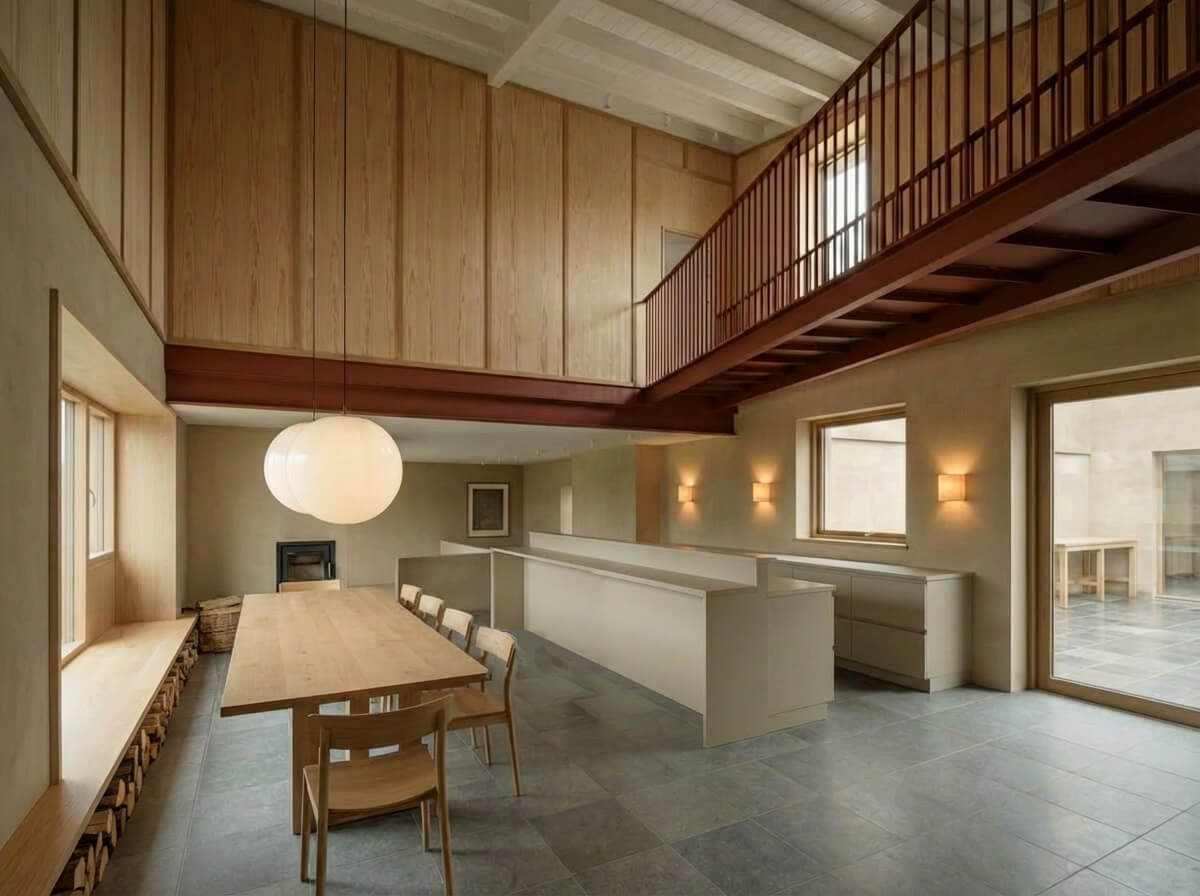

The north block houses communal spaces including the open plan kitchen/living room and a master bedroom, both orientated to enjoy the dramatic sea views. A stepping pitched roof creates generous double height volumes.

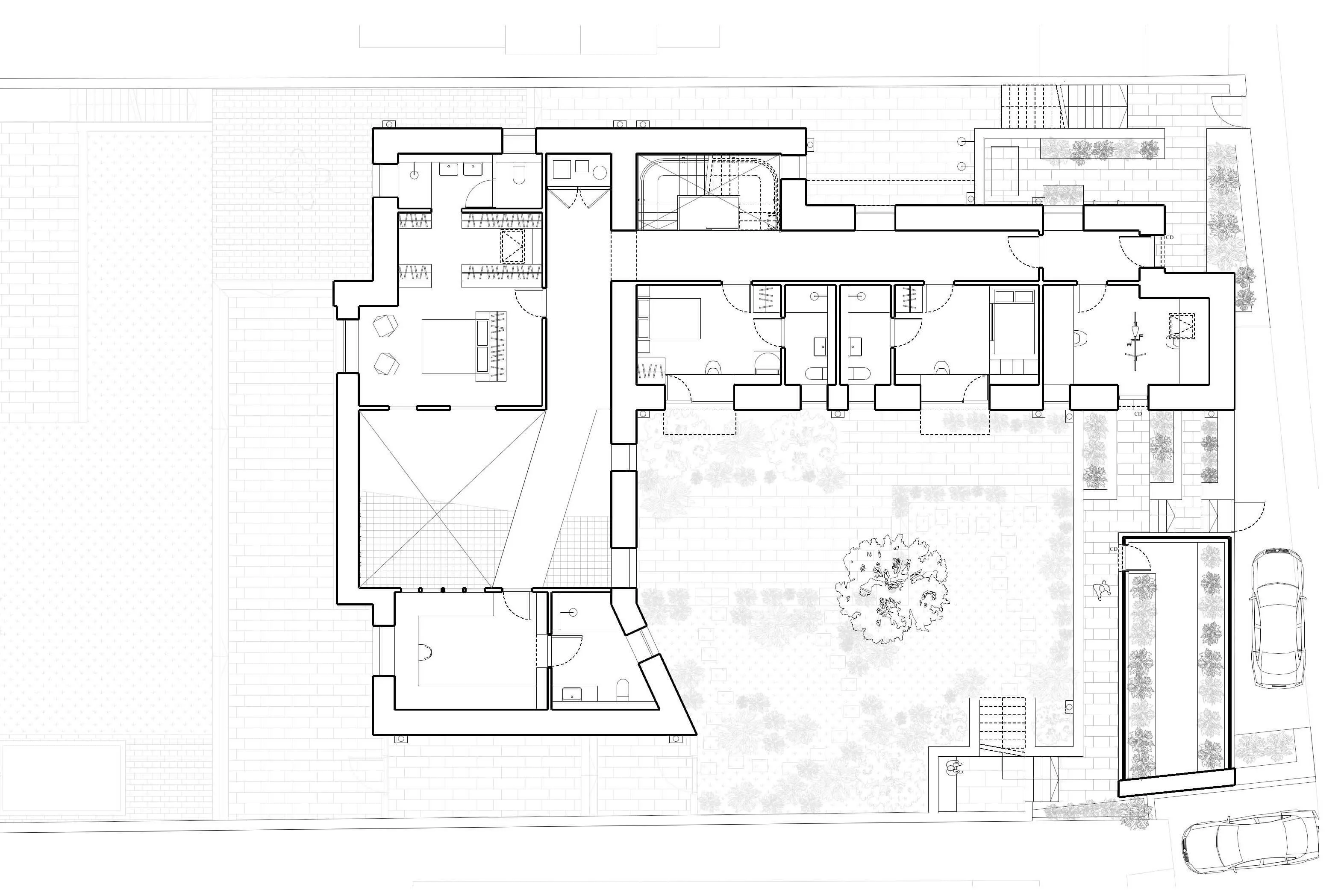

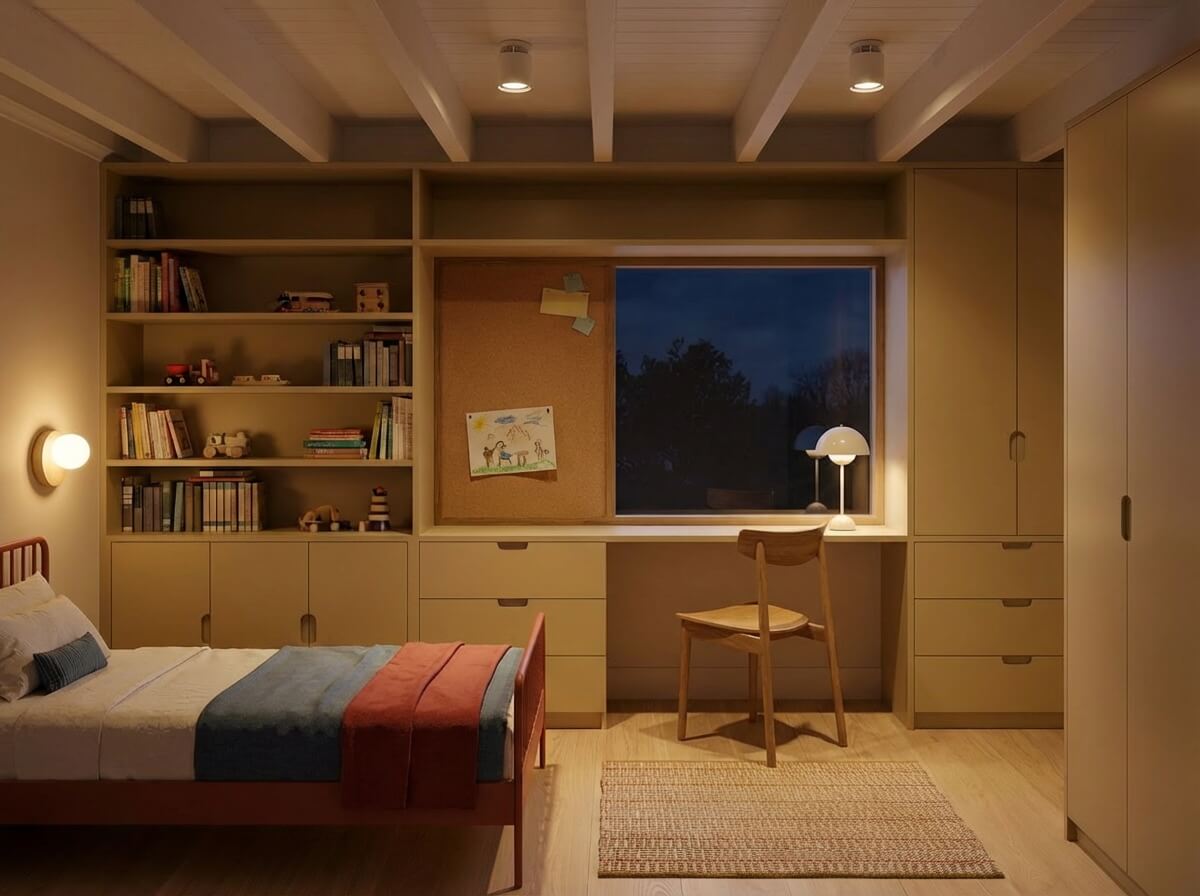

Children’s bedrooms and various ancillary spaces are housed in the adjoining flat-roofed eastern block, with circulation routes designed to be accessible to both young children and grandparents.



The mono-pitched roof typology is adopted again on the southern boundary, where a ground floor guest room and the greenhouse lines the boundary between the courtyard and the road

No items found.
Hand drawn sketch of an existing detail
Hand drawn existing landing detail
Photo of three balustrade elements from the existing building

Through robust construction and accessible design, The Watch House will provide our clients with a resilient and adaptable home for their extended family and friends to enjoy.

Designed with Passivhaus principles to be net-zero in operation, the house features in-built photovoltaic panels to generate its own energy, ground source heat pumps to reduce its environmental impact and a green roof to boost local biodiversity.

No items found.
No items found.
No items found.

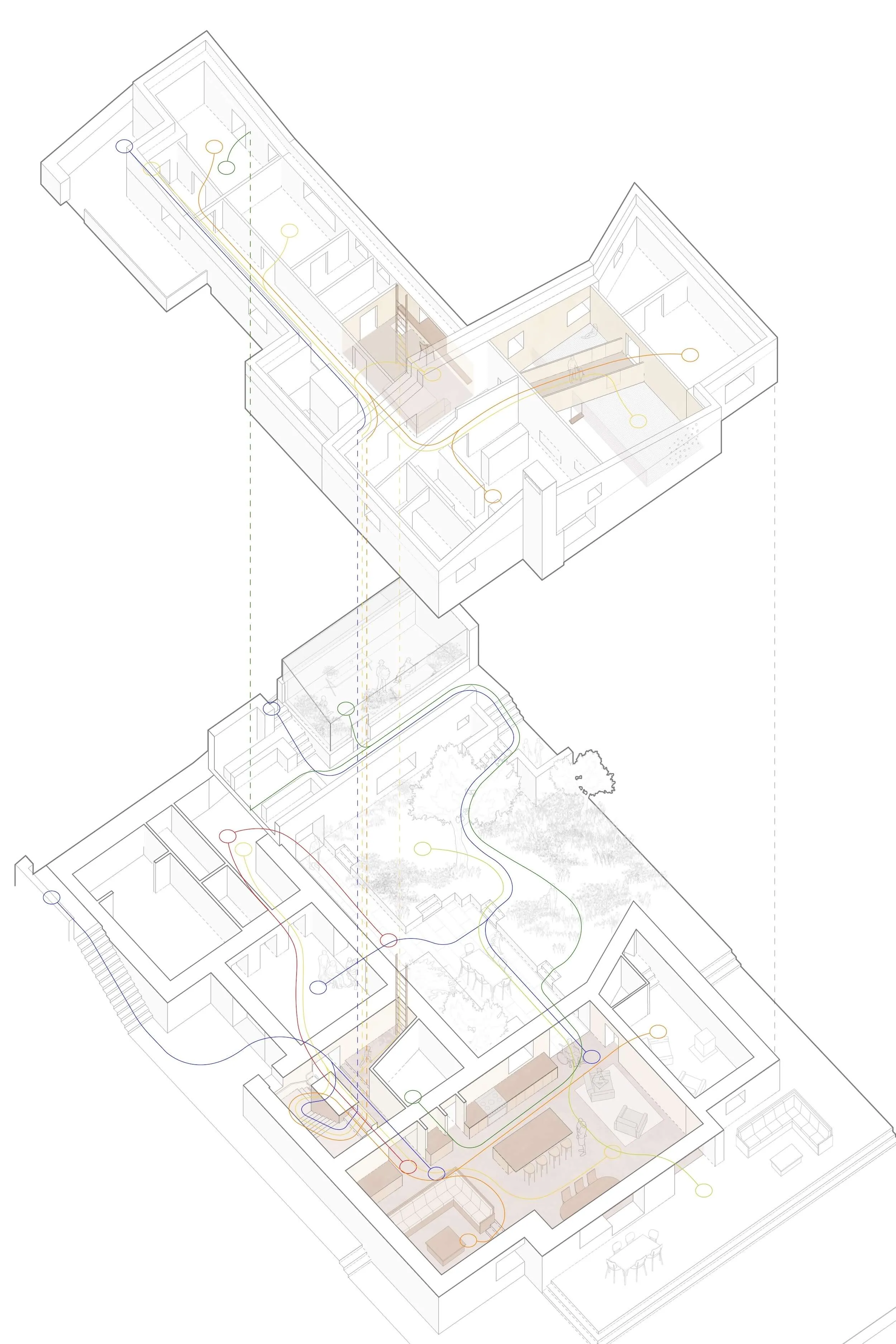

Axonometric drawing showing project's various structural elements coming together
No items found.
No items found.
No items found.
No items found.
Client
Private
Location
Perranporth, Cornwall
Structure
Momentum
Services
Inside Outside Engineers
